Dual Support / Off-The-Shelf / Dual Support Cradles / DSC-P1

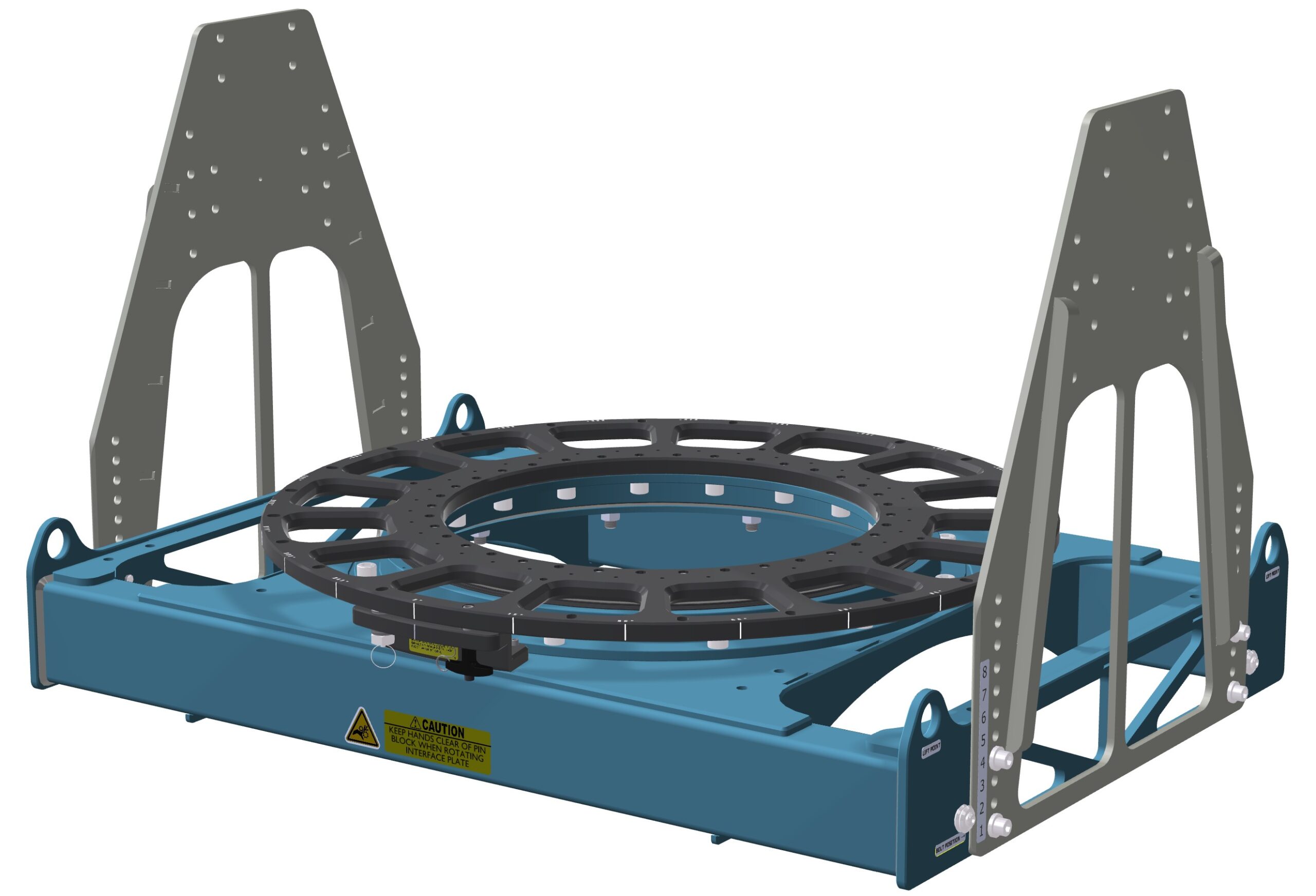

DSC-P1

(Hand Turned/Pinned Interface)

The Model DSC-P1‐P1‐P1 shown is typical and representative of the DSC-P1 Models.

To receive a CAD model or a quotation:

Configure a Flotron Cradle

Product Features

  • Safety Factor: 3 for Yield & 5 for Ultimate
  • Rated Load Capacity:
    • Dynamic, 0″ to 4″ eccentricity: 700 lbs. (317 kg.) Cantilevered 24” (609mm)
  • Operating Temperature: +32 to +104 °F (0 to +40 °C)
    • Contact factory for special applications with extended operating temperatures.
  • Materials: Steel and aluminum construction. Stainless steel fasteners.
  • Dual Pinned Interface: Redundant Pins for safety, one spring loaded, one ball lock pin to prevent interface rotation. Interface must be in payload vertical orientation (interface surface parallel to floor as shown) before removing rotation lock pins. Pins cannot be removed in any other orientation.
  • Adjustable Interface Height: Eight bolt positions to ensure that payload CG is close to primary axis of rotation centerline. Four lift points integrated into frame for bolt position adjustment or for lifting empty cradle. Guide rollers included to facilitate adjustment.
  • Optimized Design: Cradle analyzed with FEA to optimize design to be high capacity yet light weight.



Standard Configuration (For additional options click on “Configure a Flotron Fixture” button above or view dimensional drawing for detailed information)

  • Finishes: Class 10k (ISO 7 cleanroom compatible finishes) – Cradle powder coated textured Flotron blue color; stainless steel hardware; aluminum parts chem film or hard anodized; Mobiltac 375NC (or equivalent) to all slewing ring teeth; slewing ring inner raceway lubricated with Mobilux EP2 (or equivalent). Fasteners lubricated with Loctite 242 blue or Krytox GPL 207.
  • Cradle Lengths: Available from 50” – 140” in 10” increments. Distance between mounting interfaces. See load curves for more information
  • Interface Bolt Pattern: ESPA Grande/MLB interface. 36X ¼-28 UNF threaded holes on a Ø24” bolt circle.

As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.

For Cantilevered Rotation Fixtures - Creating a Model Number pdf click here.

For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
