SFP-974

Load Rating: 7,000 lbs

Swing Radius: 55.75” – 67.75”

Max Torque: 36,300 in-lbs (DR06)

Easy Crank: 12,000 in-lbs

Easy Crank (Primary Axis): 18,000 in-lbs

To receive a CAD model or a quotation:

Product Features

  • Safety Factor: 3 for Yield & 5 for Ultimate
  • Rated Load Capacity:

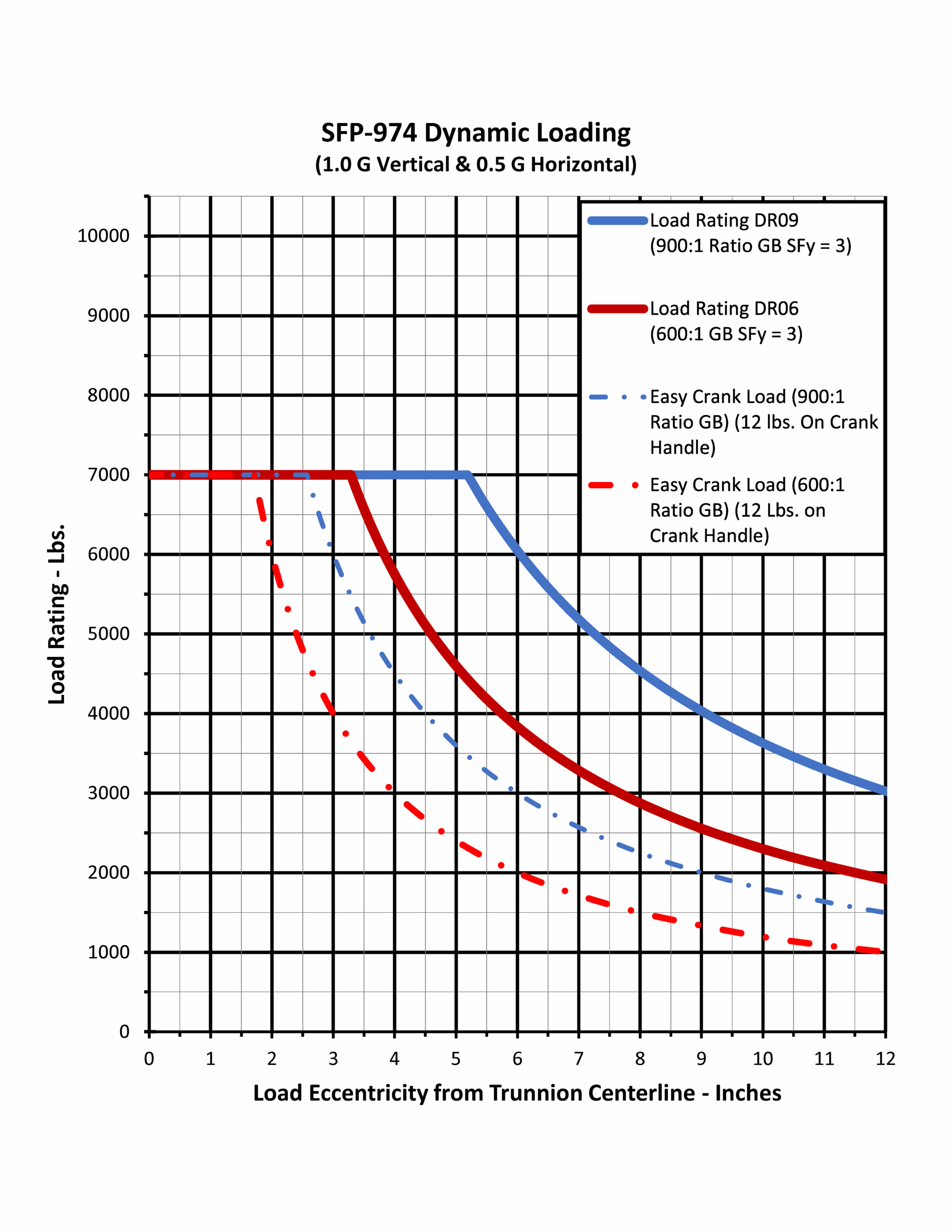

    • Dynamic, 0″ to 3.25″ eccentricity: 7,000 lbs. (3,175 kg.) when DR06 Gearbox is selected.
    • Dynamic, 0″ to 5.18″ eccentricity: 7,000 lbs. (3,175 kg.) when DR09 Gearbox is selected.
  • Operating Temperature: +32 to +104 °F (0 to +40 °C).
    • Contact factory for special applications with extended operating temperatures.
  • Main Beam Ball Lock Pin: Reliably prevents end Frames from slipping on Main Beams
  • Materials: Steel construction
  • Axial Float & Sleeve Bearing in Non-Gearbox Side Trunnion: The non-gearbox side pillow block trunnion has ½ inch of axial float to ease payload integration, increase bearing life, increase stability and reduce friction.

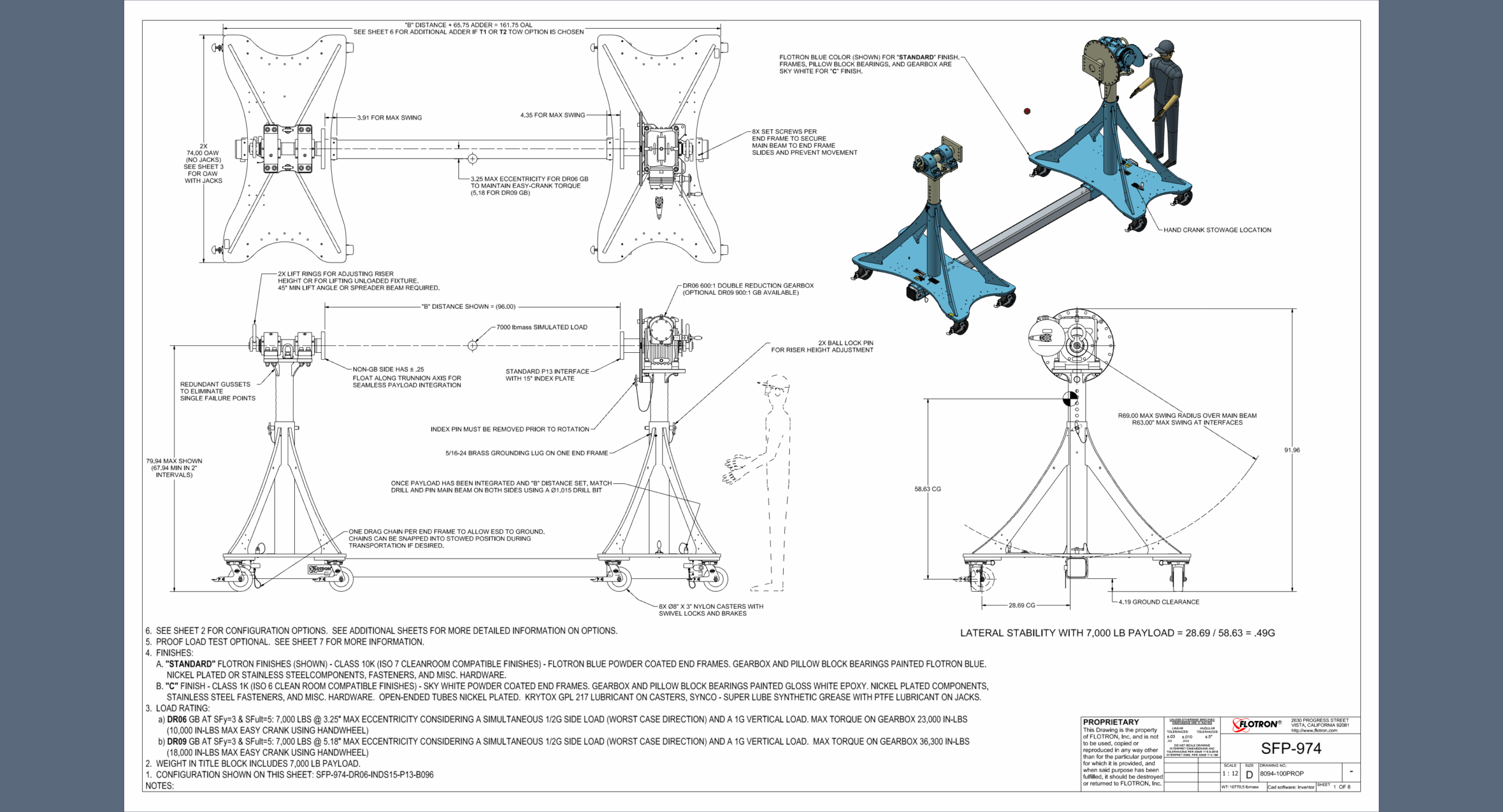

Standard Configuration (For additional options click on “Configure a Flotron Fixture” button above or view dimensional drawing for detailed information)

  • Finishes: Flotron blue powder coated end frames; Gearbox painted Flotron blue; Nickel plated or black oxide fasteners, misc. hardware, and components; Standard lubricants.
  • Main Beam: Single beam that connects the end frames.
  • Gearbox: 600:1 ratio (DR06) or 900:1 (DR09) and 12″ diameter machined aluminum hand crank.
  • Trunnion Interface/Mount/Clamp Options:
    • P13 Mounting Plate - 9” x 13”
  • Trunnion Bearings: Dual pillow block roller bearings for long bearing life and reduced friction.
  • Choice of Interface "B" distance: Distance between interfaces. See dimensional drawing for how angle interface distances are measured if angle interface is chosen.
  • Casters: 8" diameter X 3" wide nylon wheels with swivel bearing and brake.

As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.

For 700 Series - Creating a Model Number pdf click here

For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
