HD425 Data Sheet
The Model HD425-0000-B028-C5SPX shown below is typical and representative of the HD425 Models. For more information on specifying a holding fixture, see the 400 SERIES OPTIONS page and 400 SERIES CREATING A MODEL NUMBER pdf.
The maximum distance between mounting interfaces is directly related to the main beam length. Specify the distance between mounting interfaces to be at or slightly larger than the length of the part-to-be-handled. The fixture can be adjusted to accommodate smaller length parts, however, the main beam(s) extending from each end frame may be inconvenient. For more information see the
400 SERIES OPTIONS page and
400 SERIES CREATING A MODEL NUMBER pdf.
Addition of an optional index plate decreases the vertical adjustment from 10″ to 8″ and increases the minimum trunnion height from 35.5″ to 37.5″.
A smaller than standard swing radius may be recommended for some applications. See the “Technical Section” under “Holding Fixture Safety” on page 3 of 7 concerning “Unexpected Accident Loads” and the chart on page 4 of 7 referring to “Maximum Recommended Swing Radius”
Product Features:
- Safety Factor: 2
- Rated Load Capacity:
- Dynamic, 0″ eccentricity: 115 lbs. (52 kg.)
- Dynamic, 5″ eccentricity: 115 lbs. (52 kg.)
- Operating Temperature: +32 to +104 °F (0 to +40 °C). Contact factory for special applications with extended operating temperatures.
- Choice of Trunnion Interface/Mount/Clamp Options:
- Angle Interface
- Mounting Plate Interface
- Board Clamp Interface
- Choice of Main Beam Length
- Main Beam Ball Lock Pins: Reliably prevents End Frames from slipping on Main Beams
- Casters: 5″ diameter x 1 ¼” wide wheel with Performa tread and Tech Lock brake
- Gearbox: 40:1 ratio with 4″ diameter crank
- Materials: Steel construction
- Finish: Flotron Blue powder coat with selected parts zinc plated.
- Trunnion Brake Knob
- A smaller than standard swing radius may be recommended for some applications. See the “Technical Section” under “Holding Fixture Safety” on page 3 of 7 concerning “Unexpected Accident Loads” and the chart on page 4 of 7 referring to “Maximum Recommended Swing Radius”
- Optional Main Beam Lengths or Telescopic Main Beam
- Optional Trunnion Interface/Mount/Clamp
- Optional Index Plate
- Optional Casters
- Optional Gear Box: 50:1 ratio with 6″ diameter crank
- Optional finishes for clean room compatibility
- Optional Ground Lug and Drag Chain for use in electrostatically protected areas (EPA’s)
- For more about 400 Series Options click here
All data presented is based on no modifications to the product.
As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.
For 400 Series – Creating a Model Number pdf click here.
For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
HD410 Data Sheet
The Model 410-1018-B048-5 shown below is typical and representative of the 410 Models. For more information on specifying a holding fixture, see the 400 SERIES OPTIONS page and 400 SERIES CREATING A MODEL NUMBER pdf.
The maximum distance between mounting interfaces is directly related to the main beam length. Specify the distance between mounting interfaces to be at or slightly larger than the length of the part-to-be-handled. The fixture can be adjusted to accommodate smaller length parts, however, the main beam(s) extending from each end frame may be inconvenient. For more information see the
400 SERIES OPTIONS page and
400 SERIES CREATING A MODEL NUMBER pdf.
Addition of an optional index plate decreases the vertical adjustment from 10″ to 8″ and increases the minimum trunnion height from 35.1″ to 37.1″.
A smaller than standard swing radius may be recommended for some applications. See the “Technical Section” under “Holding Fixture Safety” on page 3 of 7 concerning “Unexpected Accident Loads” and the chart on page 4 of 7 referring to “Maximum Recommended Swing Radius”
Product Features:
- Safety Factor: 2
- Rated Load Capacity:

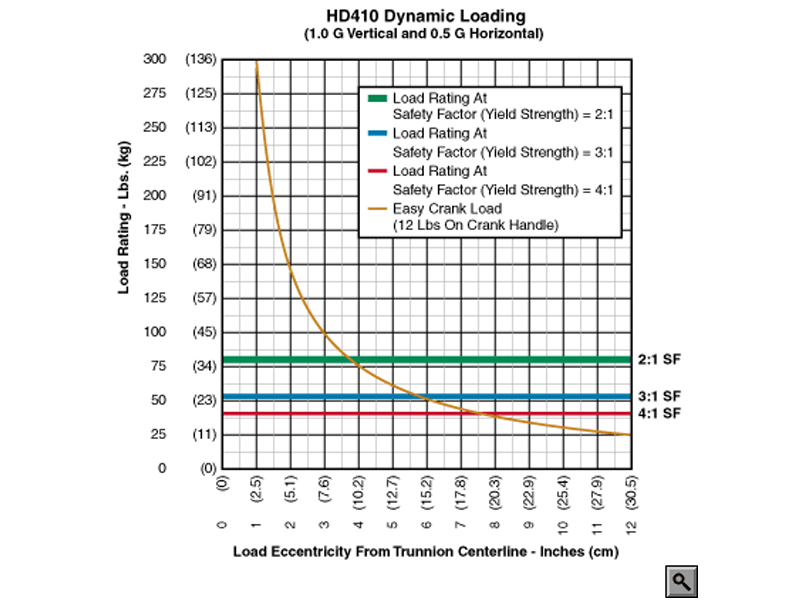

- Dynamic, 0″ eccentricity: 80 lbs. (36 kg.)
- Dynamic, 5″ eccentricity: 80 lbs. (36 kg.)
- Operating Temperature: +32 to +104 °F (0 to +40 °C). Contact factory for special applications with extended operating temperatures.
- Choice of Trunnion Interface/Mount/Clamp Options:
- Angle
- Mounting Plate
- Board Clamp
- Choice of Main Beam Length
- Main Beam Ball Lock Pins: Reliably prevents End Frames from slipping on Main Beams
- Casters: 5″ diameter x 7/8″ wide wheel with Performa tread and metal sidelock brake
- Gearbox: 40:1 ratio with 4″ diameter crank
- Materials: Steel construction
- Finish: Flotron Blue powder coat with selected parts zinc plated.
- Trunnion Brake Knob
- A smaller than standard swing radius may be recommended for some applications. See the “Technical Section” under “Holding Fixture Safety” on page 3 of 7 concerning “Unexpected Accident Loads” and the chart on page 4 of 7 referring to “Maximum Recommended Swing Radius”
- Optional Main Beam Lengths
- Optional Trunnion Interface/Mount/Clamp
- Optional Index Plate
- Optional Casters
- Optional Gear Box: 50:1 ratio with 6″ diameter crank
- Optional finishes for clean room compatibility
- Optional Ground Lug and Drag Chain for use in electrostatically protected areas (EPA’s)
- For more about 400 Series Options click here
All data presented is based on no modifications to the product.
As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.
For 400 Series – Creating a Model Number pdf click here.
For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
HD325 Data Sheet
The Model HD325-0000-B028-C5SPX shown below is typical and representative of the HD325 Models. For more information on specifying a holding fixture, see the 300 SERIES OPTIONS page and 300 SERIES CREATING A MODEL NUMBER pdf.
The maximum distance between mounting interfaces is directly related to the main beam length. Specify the distance between mounting interfaces to be at or slightly larger than the length of the part-to-be-handled. The fixture can be adjusted to accommodate smaller length parts, however, the main beam(s) extending from each end frame may be inconvenient. For more information see the
300 SERIES OPTIONS page and
300 SERIES CREATING A MODEL NUMBER pdf.
Addition of an optional index plate decreases the vertical adjustment from 12″ to 8″ and increases the minimum trunnion height from 33.5″ to 37.5″.
Product Features:
- Safety Factor: 2
- Rated Load Capacity:
- Dynamic, 0″ eccentricity: 115 lbs. (52 kg.)
- Dynamic, 5″ eccentricity: NA
- Operating Temperature: +32 to +104 °F (0 to +40 °C). Contact factory for special applications with extended operating temperatures.
- Choice of Trunnion Interface/Mount/Clamp Options:
- Angle Interface
- Mounting Plate Interface
- Board Clamp Interface
- Choice of Main Beam Length
- Main Beam Ball Lock Pins: Reliably prevents End Frames from slipping on Main Beams
- Casters: 5″ diameter x 7/8″ wide wheel with Performa tread and metal sidelock brake
- Materials: Steel construction
- Finish: Flotron Blue powder coat with selected parts zinc plated.
- Trunnion Brake Knob
- Optional Main Beam Lengths or Telescopic Main Beams
- Optional Trunnion Interface/Mount/Clamp
- Optional Index Plate
- Optional Casters
- Optional finishes for clean room capability
- Optional Ground Lug for use in electrostatically protected areas (EPA’s)
- For more about 300 Series Options click here
All data presented is based on no modifications to the product.
As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.
For 300 Series – Creating a Model Number pdf click here.
For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
HD310 Data Sheet
The Model HD310-1023-TB-5 shown below is typical and representative of the HD310 Models. For more information on specifying a holding fixture, see the 300 SERIES OPTIONS page and 300 SERIES CREATING A MODEL NUMBER pdf.
The maximum distance between mounting interfaces is directly related to the main beam length. Specify the distance between mounting interfaces to be at or slightly larger than the length of the part-to-be-handled. The fixture can be adjusted to accommodate smaller length parts, however, the main beam(s) extending from each end frame may be inconvenient. For more information see the
300 SERIES OPTIONS page and
300 SERIES CREATING A MODEL NUMBER pdf.
Addition of an optional index plate decreases the vertical adjustment from 12″ to 8″ and increases the minimum trunnion height from 33.1″ to 37.1″.
Product Features:
- Safety Factor: 2
- Rated Load Capacity:
- Dynamic, 0″ eccentricity: 80 lbs. (36 kg.)
- Dynamic, 5″ eccentricity: NA
- Operating Temperature: +32 to +104 °F (0 to +40 °C). Contact factory for special applications with extended operating temperatures.
- Choice of Trunnion Interface/Mount/Clamp Options:
- Angle Interface
- Mounting Plate Interface
- Board Clamp Interface
- Choice of Main Beam Length
- Main Beam Ball Lock Pins: Reliably prevents End Frames from slipping on Main Beams
- Casters: 5″ diameter x 7/8″ wide wheel with Performa tread and metal sidelock brake
- Materials: Steel construction
- Finish: Flotron Blue powder coat, with selected parts zinc plated.
- Trunnion Brake Knob
- Optional Main Beam Lengths or Telescopic Main Beams
- Optional Trunnion Interface/Mount/Clamp
- Optional Index Plate
- Optional Casters
- Optional finishes for clean room capability
- Optional Ground Lug for use in electrostatically protected areas (EPA’s)
- For more about 300 Series Options click here
All data presented is based on no modifications to the product.
As Flotron is constantly improving products and methods of manufacturing, we reserve the right to modify and/or change design or specifications without notice. Please contact Flotron for verification of critical dimensions and specifications.
For 300 Series – Creating a Model Number pdf click here.
For clarification of terms or phrases, please see the Holding Fixtures Definitions page.
